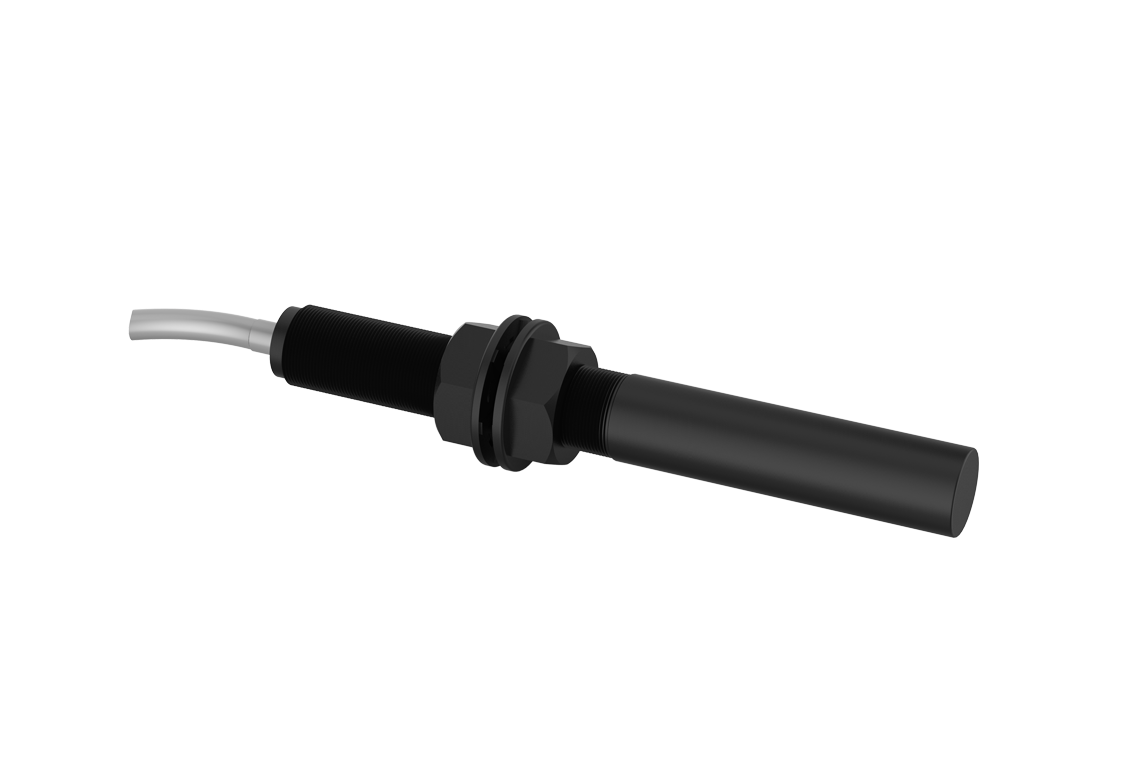

SNBS-61/30BU Magnetic Sensor Switch


ELECTRIC PARAMETER

Model	SLBS-61BU-1.5JTOW-E
Model	SLBS-30BU-1.5JTOW-E
Working Voltage	Max:200VDC Max:140VAC
Working Consumption	Max:1.5ADC Max:1.1AAC
Detected Distance	<30mm
Work Status	Bistable state, S-pole conducts, N-pole releases
Response Frequency	Max：2.1KHz
Breakdown Voltage	Min：300V
Conversion Capacity	Max：50W/VA
Conduction Internal Resistance	Max：0.1Ω
Insulation Resistance	Min：1G
Proximity Sensitivity	22-28AT
Release Sensitivity	22AT
Conduction Delay	Max：0.75ms
Release Delay	Max：0.3ms
Vibration Resistance	30g
Impact Resistance	100g
IP Code	IP67
Ambient Temperature	Work:-40℃～+125℃；Storage:-65℃～+100℃
Weight	About 52g
Cable Length	Default is 1.5M, which can be customized according to client's requirements
Certification	CE、ISO：9001
