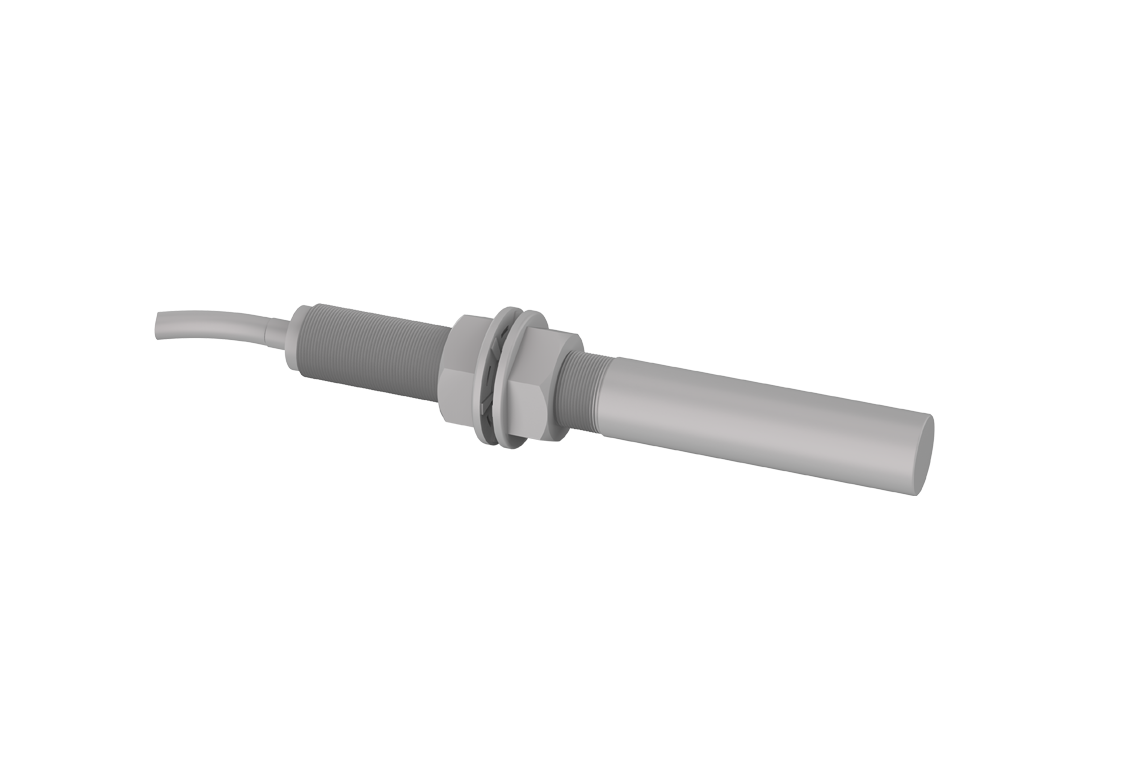

SNBS-77NS Magnetic Sensor Switch

$D2~0U9B~1Z6X{[D_C]2KI8L.png$

ELECTRIC PARAMETER

Model	SLBS-77NS-1.5KUDW-E
Working Voltage	Max:250VDC/AC
Working Consumption	Max:5A
Detected Distance	5-6mm
Work Status	Bistable state, S-pole conducts, N-pole releases
Response Frequency	Max：10KHz
Breakdown Voltage	Min：500VDC/AC
Conversion Capacity	Max：250W/VA
Conduction Internal Resistance	Max：0.15Ω
Insulation Resistance	Min：1G
Proximity Sensitivity	40-100AT
Release Sensitivity	16AT
Conduction Delay	Max：2ms
Release Delay	Max：1ms
Vibration Resistance	10g
Impact Resistance	150g
IP Code	IP67
Ambient Temperature	Work:-60℃～+100℃； Storage:-60℃～+100℃
Weight	About 52g
Cable Length	Default is 1.5M, which can be customized according to client's requirements
Certification	CE、ISO：9001
