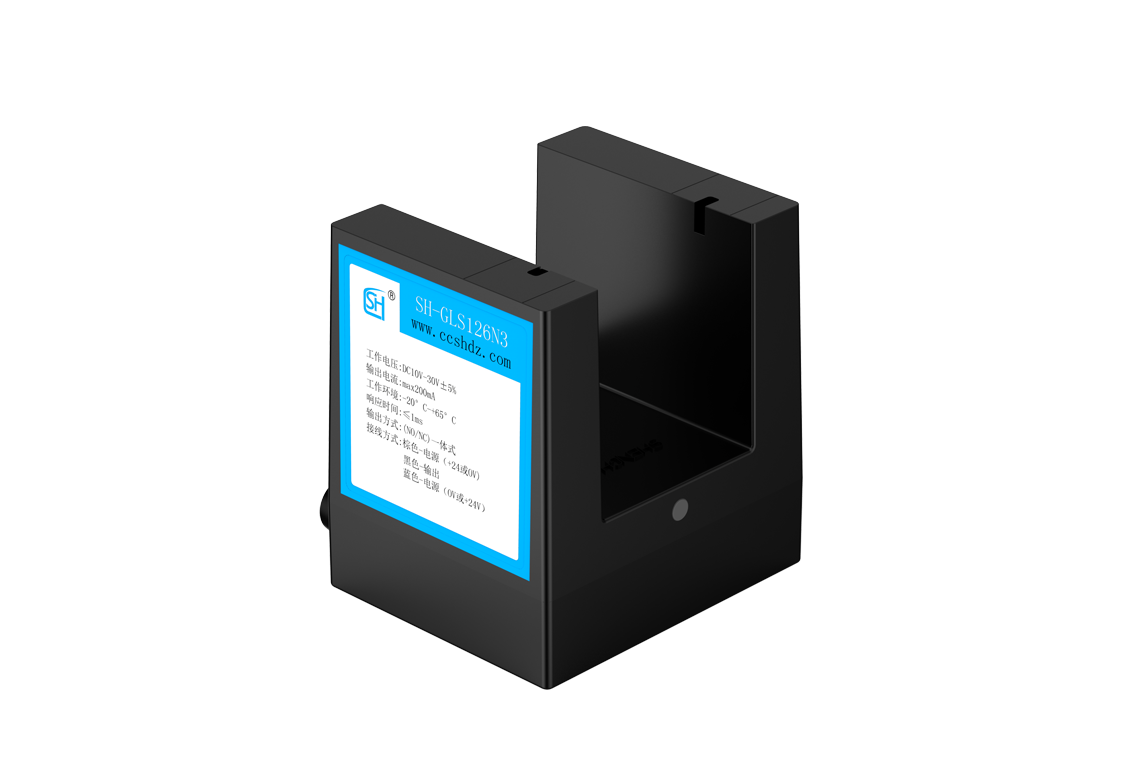

Current Location：Home > PHOTOELECTRIC SWITCH > SH-GLS126N3 Groveed Type Photoelectronic Switch
ELECTRIC PARAMETER
| Model | SLUR-1263-3.5SCA4-B |
| Supply Voltage | DC10V～30V±5% |
| Current Consumption | <40mA |
| Detection Method | Projective |
| Detected Distance | 27mm |
| Detected Object | Opaque object more than 1.5mm |
| Light Source | Infrared Emitting Diode （940nm） |
| Response Frequency | >1KHz（<1ms） |
| Protective Circuit | Power reverse connection protection；Overcurrent and overvoltage protect circuit outout |
| Control Output | Load supply voltage Max:30VDC; Load current Max:170mA (the remaining voltage Max:1VDC); |
| Indicator Lamp | Power Indicator: Green LED Action Indicator: Red LED; (NO: Light-Dark NC: Dark-Light) |
| Voltage Withstand | 500VAC 50/60Hz 1min |
| Ambient Lighting | Incandescent lamp：<3000Lux； Sunlight ：<10000Lux |
| Ambient Temperature | Work: -20℃～65℃； Storage:-35℃～70℃ |
| Ambient Humidity | Work: 35～80%RH； Storage:35～80%RH |
| Insulation Resistance | Min：20MΩ（500VDC） |
| Vibration Resistance | 10～55Hz Vibration Resistance 1.5mm X、Y、Z each direction 2h |
| Impact Resistance | 500m/s2 X、Y、Zeach direction 3times |
| IP Code | IP54 |
| Material | ABS |
| Weight | About35g |
| Cable Length | Default is 3.5M, which can be customized according to client's requirements |
| Certification | CE、UCMP、ISO：9001 |
