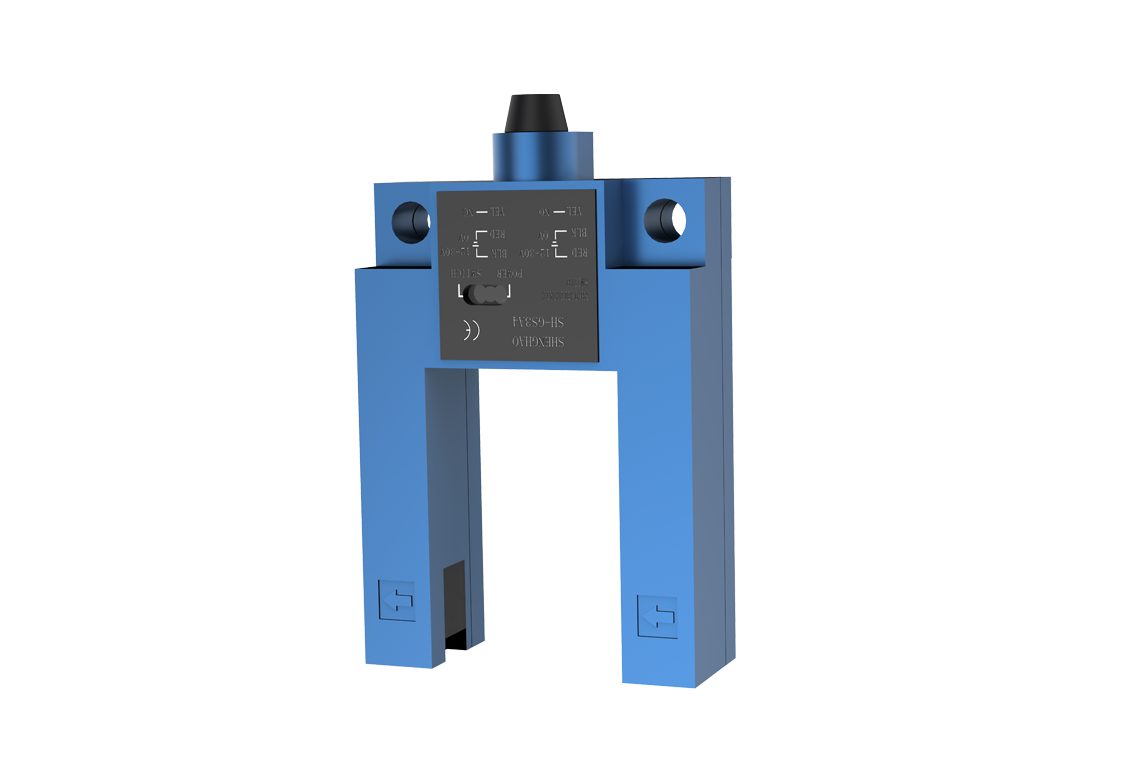

Current Location：Home > PHOTOELECTRIC SWITCH > SH-GS3A4/E4/B4 Slot Type Photoelectronic Switch

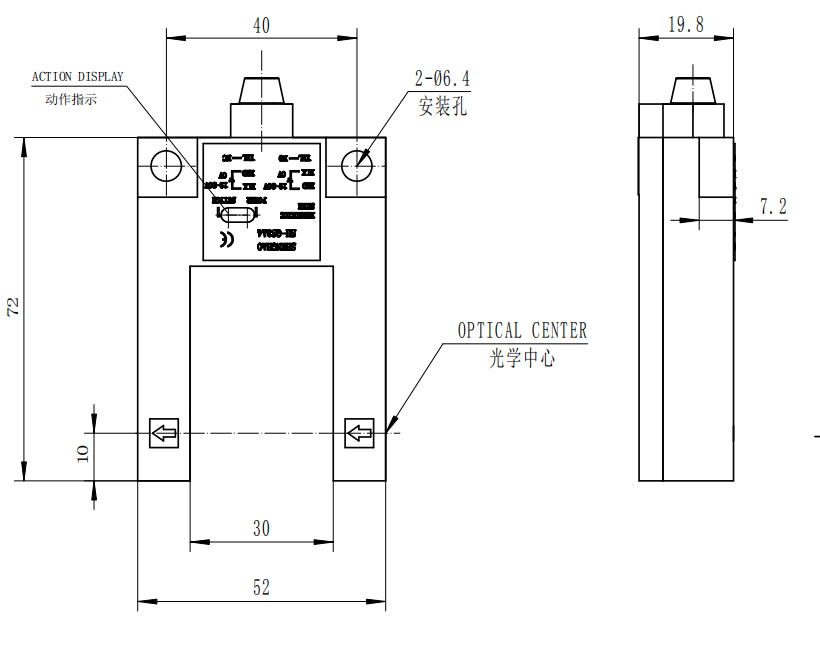

![369BYIA(E90[T0]E{R`C$_E.png](/attached/image/20190713/1563006651142400.png "1563006651142400.png")
ELECTRIC PARAMETER
| Model | SLUR-S3A4-1SCOC-B |
| Supply Voltage | DC11V～30V±5% |
| Current Consumption | <40mA |
| Detection Method | Projective |
| Detected Distance | 30mm |
| Detected Object | Opaque object more than 1.5mm |
| Detection Channel | Single channel |
| Light Source | Infrared Emitting Diode |
| Response Frequency | >1KHz（<1ms） |
| Protective Circuit | Power reverse connection protection；Overcurrent and overvoltage protect circuit outout |
| Control Output | Load supply voltage Max:30VDC; Load current Max:160mA (the remaining voltage Max:0.6VDC); |
| Indicator Lamp | Power Indicator: Green LED Action Indicator: Red LED; (Dark-Light) |
| Voltage Withstand | 500VAC 50/60Hz 1min |
| Ambient Lighting | Incandescent lamp：<3000Lux； Sunlight：<10000Lux |
| Ambient Temperature | Work:-20℃～65℃； Storage:-35℃～70℃ |
| Ambient Humidity | Work：35～80%RH；Storage：35～80%RH |
| Insulation Resistance | Min：20MΩ（500VDC） |
| Vibration Resistance | 10～55Hz Amplitude fluctuation 1.5m X、Y、Z each direction 2h |
| Impact Resistance | 500m/s2 X、Y、Z each direction 3times |
| IP Code | IP5 |
| Material | Ferrochrome、ABS |
| Weight | About 150g |
| Cable Length | Default is 1M, which can be customized according to client's requirements |
| Certification | CE、UCMP、ISO：9001 |
