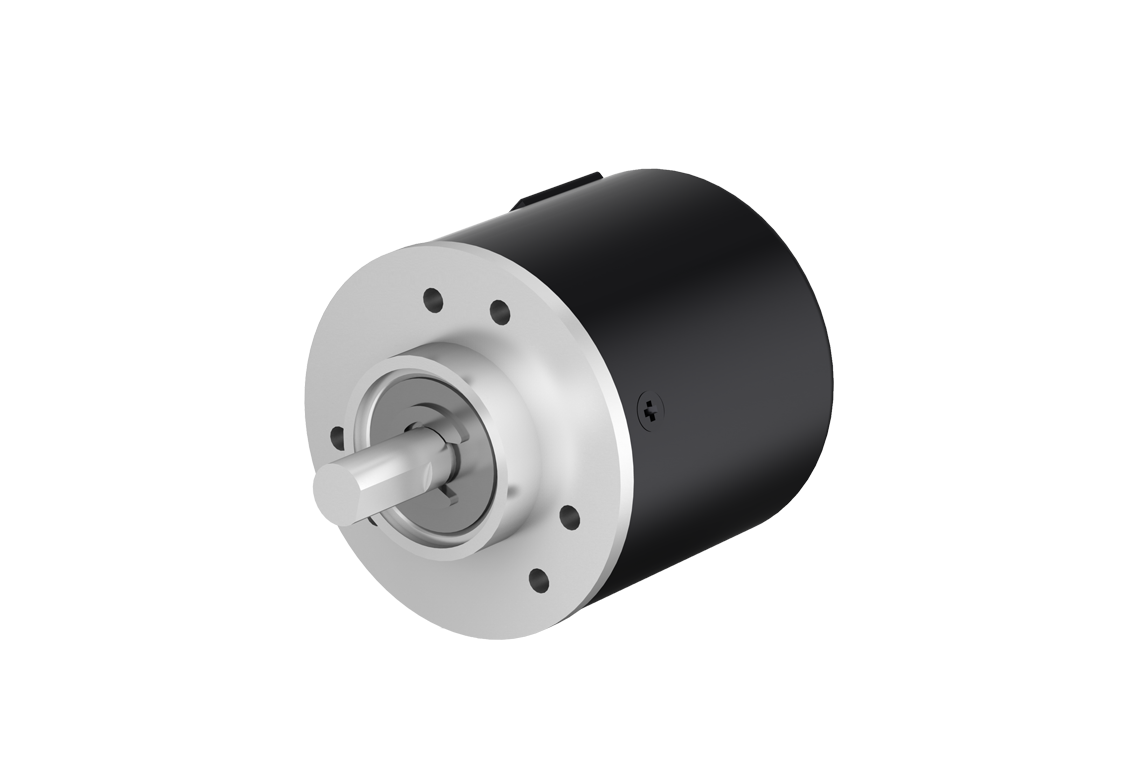

MN-C3J6 Absolute solid shaft encoder







Electric Parameter

Output FormDigital square waveSimulated currentSimulated resistanceSimulated voltages
Measurement accuracy

60-2500p/r

0-20mA

0-10kΩ

0-10V

Supply Voltage

DC5±5%、DC8V~30V±5%

Working Consumption

100mA（Max）

Response Frequency

300KHz（Max）

Signal Accurancy

T±1/8T

Rise & Fall Time

1000ns（Max）

Signal Top Value

VCC-1.5V（Min）

Signal Low Value

0.6V（Max）

Insulation Resistance

≥10MΩ（500VDC）

Certification

CE  ISO:9001

Mechanical Parameter

Working power

5N

Working /Storage Temperature

-20~+85℃/-25~+85℃

Working /Storage Humidity

35-80%RH/35-80%RH

Vibration  Resistance

100m/s2，200Hz

Impact  Resistance

1000 m/s2，10ms

IP Code

IPX54
