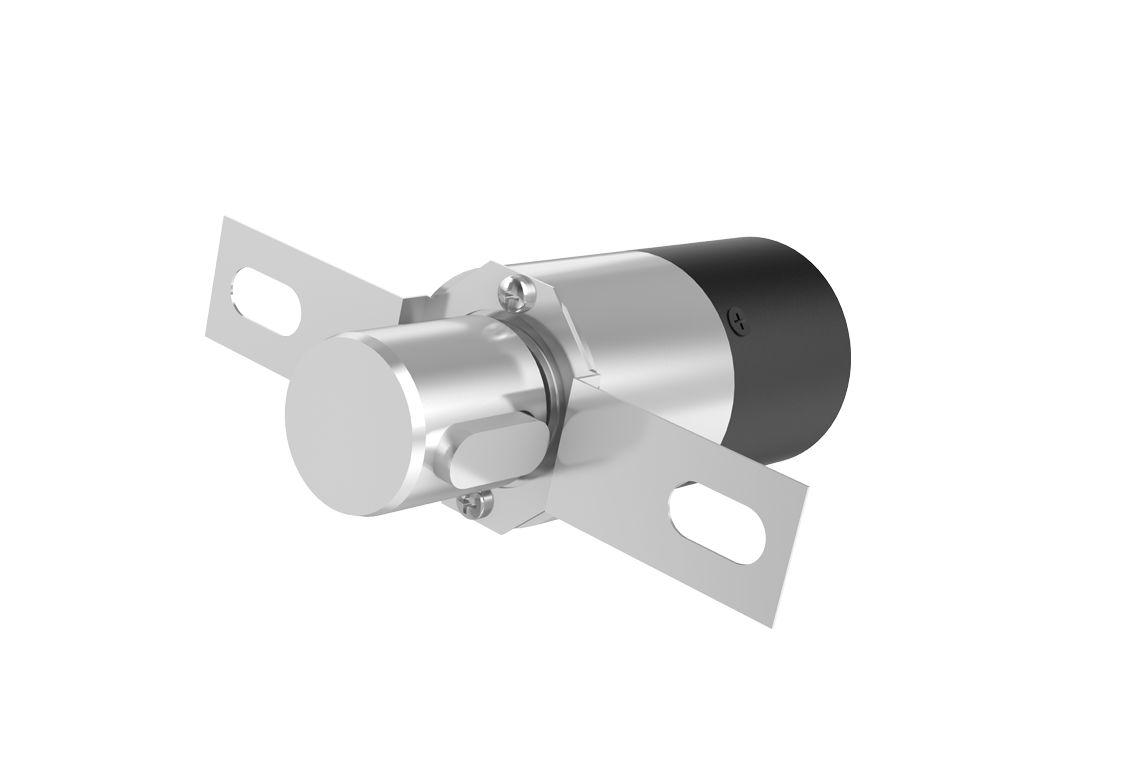

Current Location：Home > ABSOLUTE ENCODER > MD-D3J8 Absolute encoder
Electric Parameter
| Bit Single-ring | 8Bit | Protocol | Timed Transmission |
| Bit Multi-ring | 64Single-rin | Code System | Binary Code |
Overall Accuracy | 14Bit | Measurement Range | 0-360°（Single-ring） |
| Working Voltage | 10-30V | Resolution | 360/2^N (N is bit) |
| Working Consumption | ≤50mA | Angle calculation | θ=（360*n）/2^N（N is decimal data ） |
| Communication interface | RS485 | Working Temperature | -40℃-80℃ |
| Baud Rate | 19200B | Storage Temperature | -45℃-85℃ |
| Update Rate | 100Hz | IP Code | IP54 |

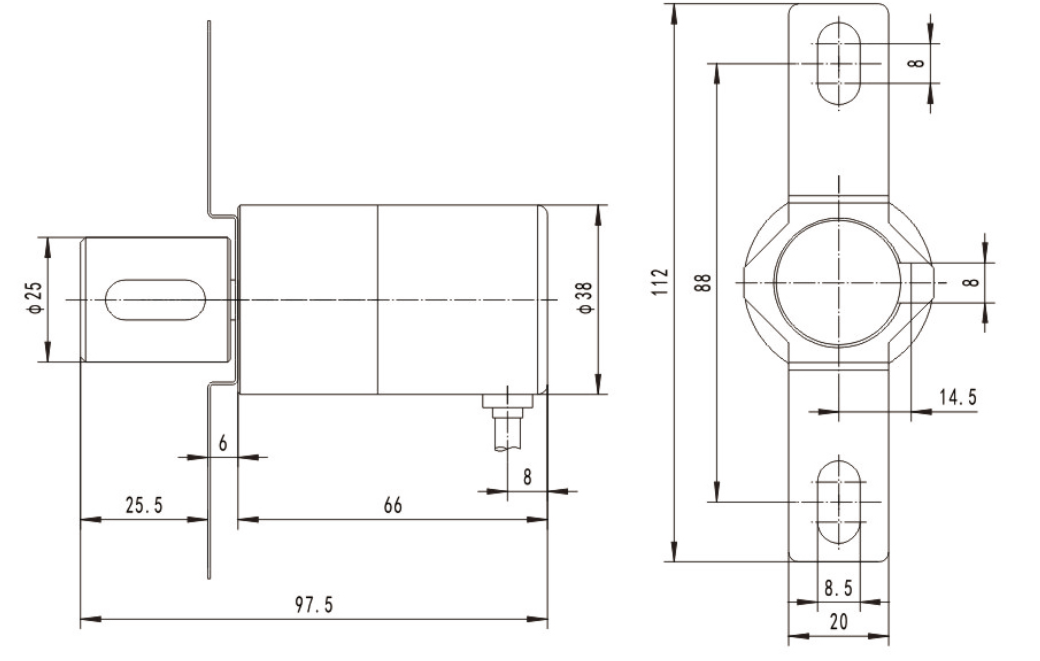

Mechanical Parameter
| Moment of inertia | 1.5x10kgm2 | Weight | About 0.35kg |
| Starting Torque | 1.5x10Nm（25℃） | Max RPM | 800rpm |
| Vibration Resistance | 2.5g | Radial Axle Load | ≤20N |
| Impact Resistance | 20g | Axial Axle Load | ≤10N |
Data bytes
| First Byte | 0XAB |
| Sencod Byte | 0XCD |
| Third Byte | 0X05 |
| Fourth Byte | 0X00-0X3F(多圈值) |
| Fifth Byte | 0X00-0XFF(單圈值) |
| Six Byte | 0X00 |
| Seven Byte | 0XFF |
| Eight Byte | =(3+4+5+6+7)字節 |
| Nine Byte | =(3^4^5^6^7) 字節 |
| Ten Byte | 0X3D |
Notes: Protocol can be difined.
