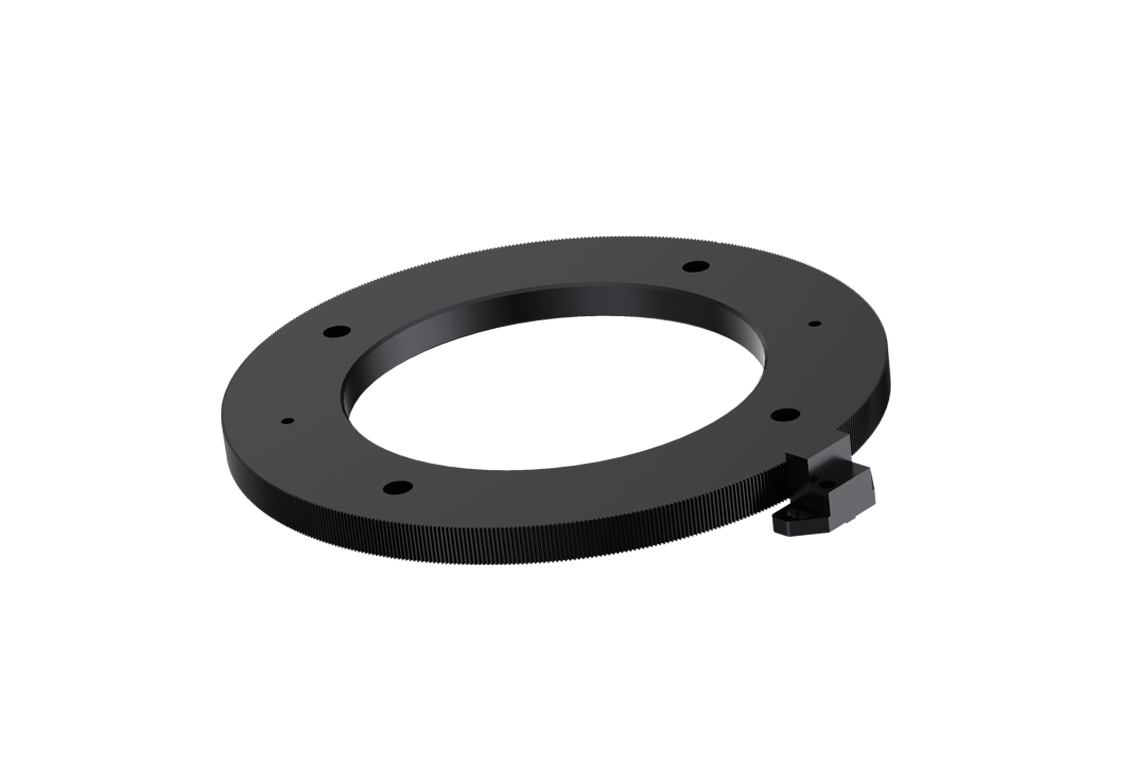

Current Location：Home > INCREMENTAL ENCODER > EM-MG Gear Incremental Encoder

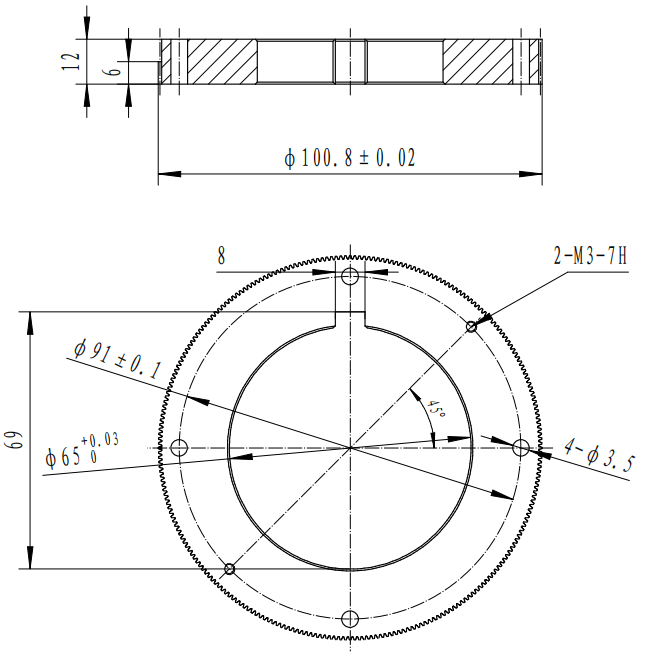

![LYS7EU]3NCSTTBBK5Z$(@~7.png](/attached/image/20190711/1562806737945843.png "1562806737945843.png")
Electric Parameter
| Model | EM-MGP | EM-MGP |
| Output Form | ABZ | |
| Output Signal | TTL/RS422 | 1VPP sin cos |
| Supply Voltage | 5V±5% | |
| Working Consumption | 30mA | 20mA |
| Response Frequency | 10MHz（max） | 1MHz（max） |
| Working Temperature | -20℃~+100℃ | |
| IP Code | IPx68 | |
| Module Of Gear | 0.3/0.4/0.5mm | |
Gear Teeth | Not limited | 128/256/512 |
Thickness Of Gear | 12mm | 10mm（min） |
Gear Material | 45#Steel | |
| gear precision | ISO8 | |
