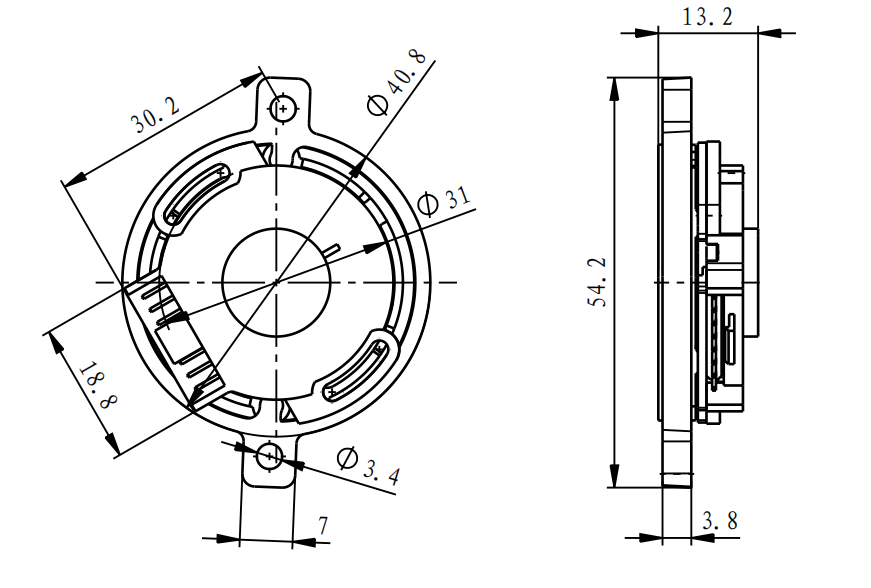

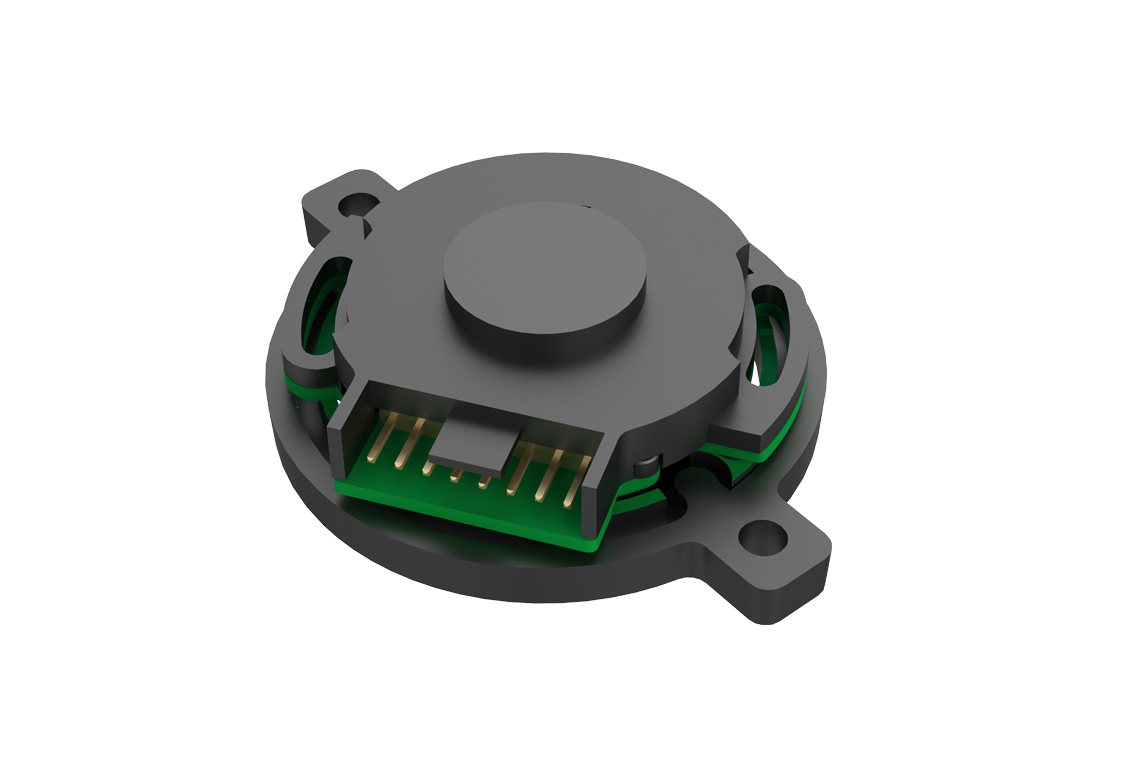

EN-A5E0 Incremental Hollow Shaft Encoder





Electric Parameter

Output FormLine Driver
Output Signal

UVW-ABZ

Supply Voltage

DC5±5%

Working Consumption

25mA（Max）

Signal Accurancy

T±1/8T

Mangnetometer

30-70（mT）

Start-up Delay

40ms

Signal delay

1.8us（Max）

Linearity error

±0.5°

Signal Top Value

2.5V（Min）

Signal Low Value

0.6V（Max）

Insulation Resistance

≥10MΩ

Resolution

1---4096/R  Notes: Resolution can be customized.

Magnetic pole number

3P、4P、5P   Notes:Magnetic pole number can be customized.

Mechanical Parameter

Max  RPM

25000rpm

Starting Torque

0.002N·m（Max  25℃）

Working /Storage Temperature

-25~+120℃/-25~+130℃

Working /Storage Humidity

35-80%RH/35-80%RH

IP Code

IPX50（可做特殊處理）
