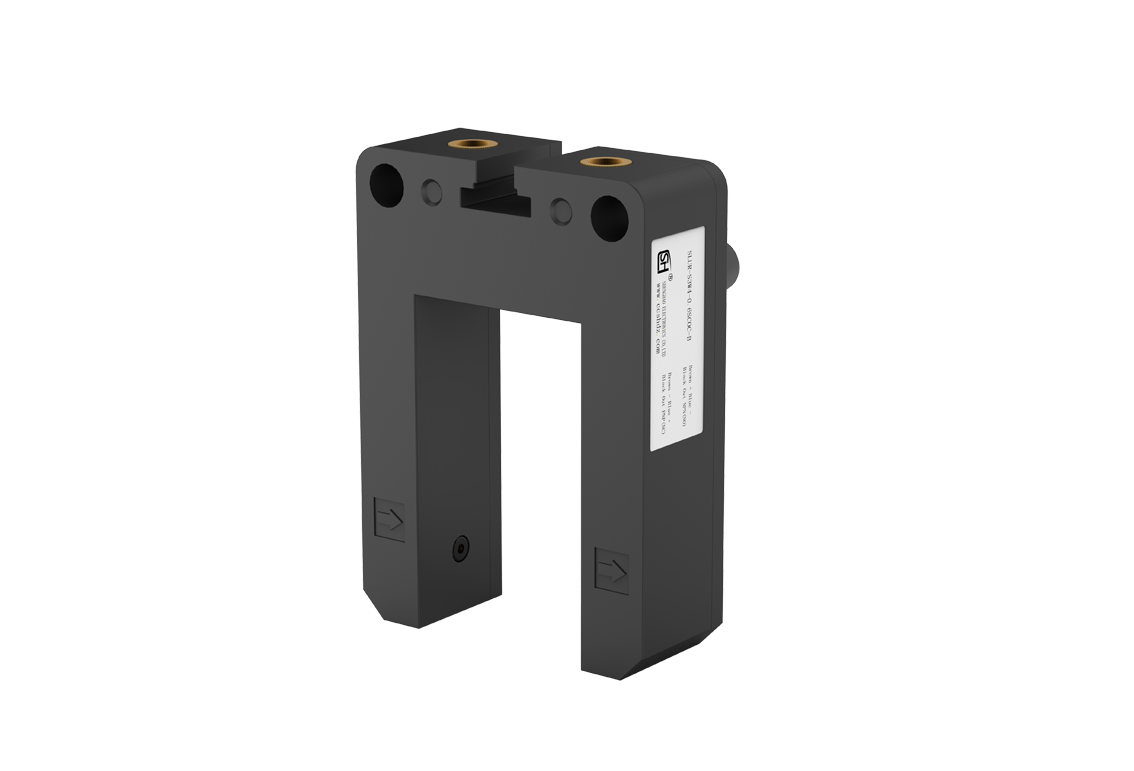

SLUR-GS3W4 Slot Type Photoelectronic Switch


Electric Parameter

Model	SLUR-S3W4-1SCOC-B
Supply Voltage	DC11V～30V±5%
Current Consumption	<20mA
Detection Method	Projective
Detected Distance	30mm
Detected Object	Opaque object more than 1.5mm
Detection Channel	Single channel
Light Source	Infrared Emitting Diode（940nm）
Response Frequency	>1KHz（<1ms）
Protective Circuit	Power reverse connection protection；Overcurrent and overvoltage protect circuit outout
Control Output	Load supply voltage Max:30VDC; Load current Max:150mA (the remaining voltage Max:1VDC);
Indicator Lamp	Power Indicator: Green LED Action Indicator: Red LED; (NO: Light-Dark NC: Dark-Light)
Voltage Withstand	500VAC 50/60Hz 1min
Ambient Lighting	Incandescent lamp：<3000Lux；Sunlight：<10000Lux
Ambient Temperature	Work:-20℃～65℃； Storage:-35℃～70℃
Ambient Humidity	Work:35～80%RH；Storage:35～80%RH
Insulation Resistance	Min：20MΩ（500VDC）
Vibration Resistance	10～55HzAmplitude fluctuation 1.5mm X、Y、Z each direction 2h
Impact Resistance	500m/s² X、Y、Z each direction 3times
IP Code	IP54
Material	ABS
Weight	About 50g
Cable Length	Default is 1M, which can be customized according to client's requirements
Certification	CE、UCMP、ISO：9001
