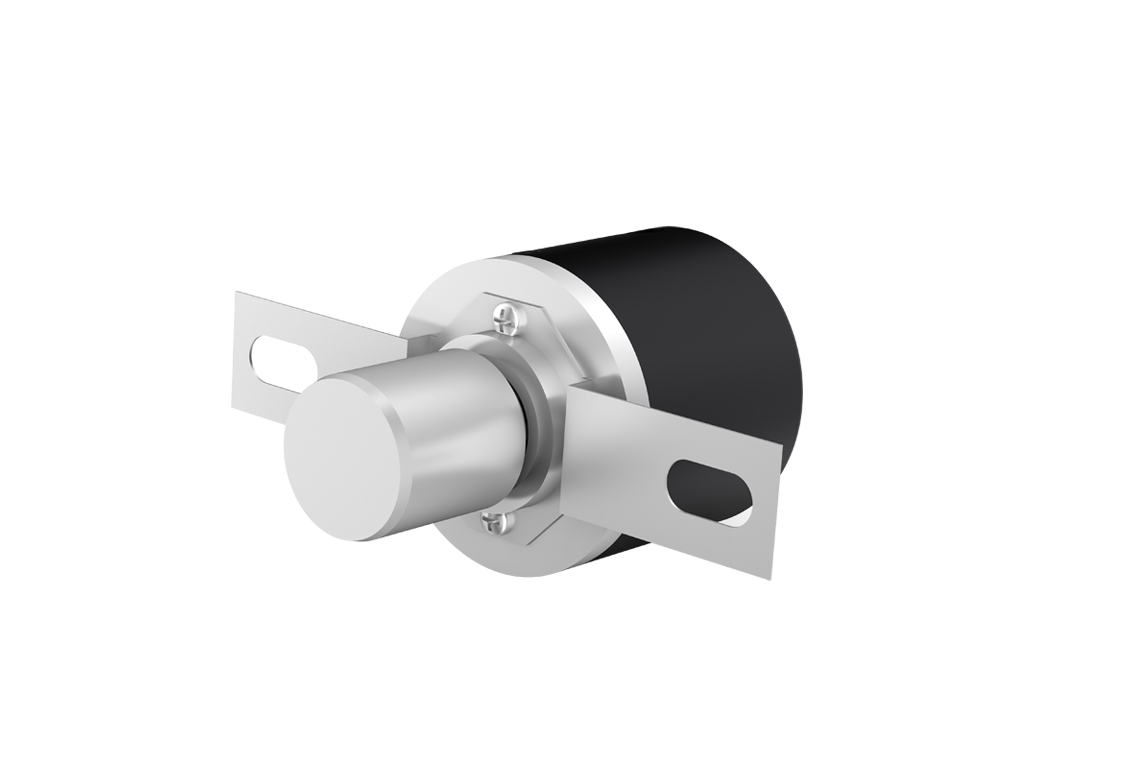

Current Location：Home > ABSOLUTE ENCODER > AS-C5A8 Absolute solid shaft encoder
![)]`I]`AEW(9`AU5{B1TVOOD.png](/attached/image/20190712/1562908804834564.png "1562908804834564.png")
ELECTRIC PARAMETER
Working Voltage | 10-30VDC | |
Resolution | 10Bit | |
non-loaded consumption current | 40mA | |
Maximum load current | 80mA | |
output method | NPN open collector | |
Code System | Gray code negative logic | |
output frequency |
200kHZ(MAX) | |
ENVIROMENTAL PARAMETER
| Working /Storage Temperature | -40~+85℃ |
| Working /Storage Humidity | 35-80％RH |
| Vibration Resistance | 100m/s2，200Hz |
| Impact Resistance | 1000m/s2，10ms |
| IP Code | IP54 |
MECHANICAL PARAMETER
Max RPM | 2000r/min |
Starting Torque（25°C） | 5X10-3N.M |
Axle Load | 40N（Radial）20N（Axial ） |
Inertia Moment | 4X10-8N.M.S |
Permissible angular acceleration | 1X104rad/s |
Main Material | AL 2A12 |
Shaft Material | 304 |
