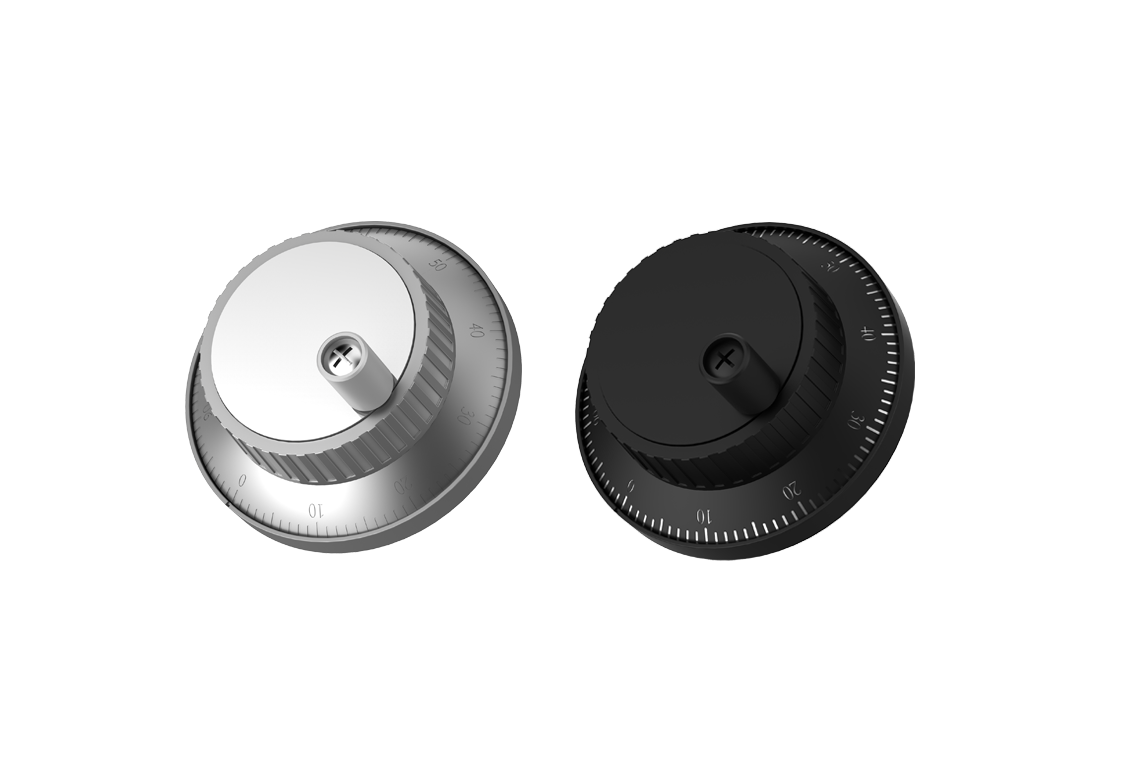

Current Location：Home > INCREMENTAL ENCODER > EM-160 Manual Pulse Generator
Electric Parameter
| Output Form | Line Driver | Open Collector | Voltage |
| Output Signal | ABA/B/ | AB | |
| Supply Voltage | DC5±5%、DC8V~30V±5% | ||
| Working Consumption | 100mA（Max） | ||
| Response Frequency | 300KHz（Max） | ||
| Signal Accurancy | T±1/8T | ||
| Rise & Fall Time | 1000ns（Max） | ||
| Signal Top Value | VCC-1.5V（Min） | ||
| Signal Low Value | 0.6V（Max） | ||
| Insulation Resistance | ≥10MΩ（500VDC） | ||
| Resolution | 25/100P/R Notes: Resolution can be customized. | ||
| Certification | CE ISO:9001 | ||

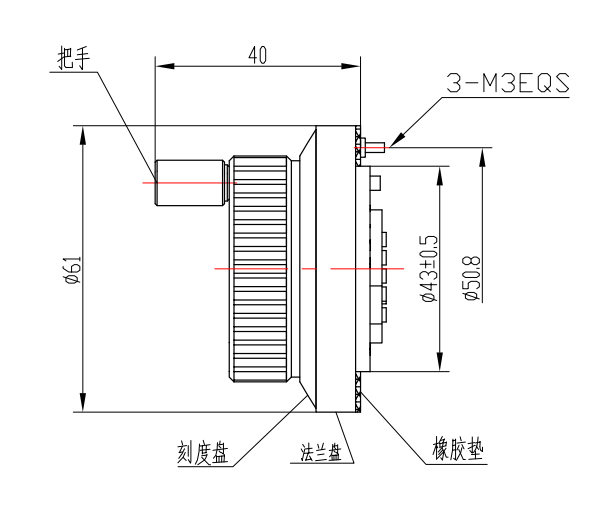

Mechanical Parameter
| Max RPM | 200r/min |
| Working /Storage Temperature | -20~+85℃/-25~+85℃ |
| Working /Storage Humidity | 35-80%RH/35-80%RH |
| Vibration Resistance | 100m/s2，200Hz |
| Impact Resistance | 1000 m/s2，10ms |
| IP Code | IPX54 |
| Main Material | AL/ABS |
